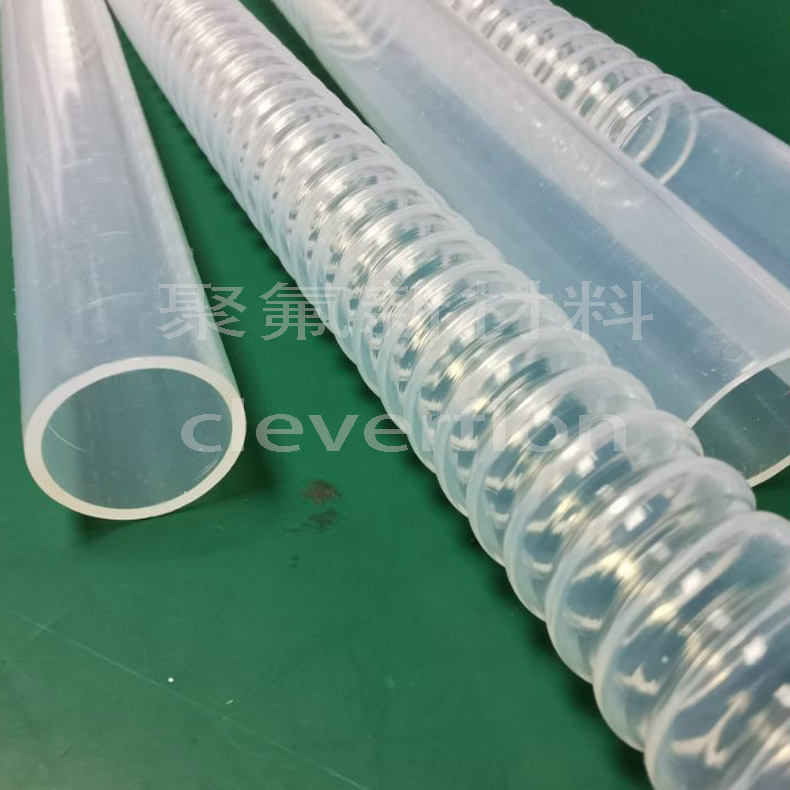

chemical resistant clear PFA FEP PTFE bellows

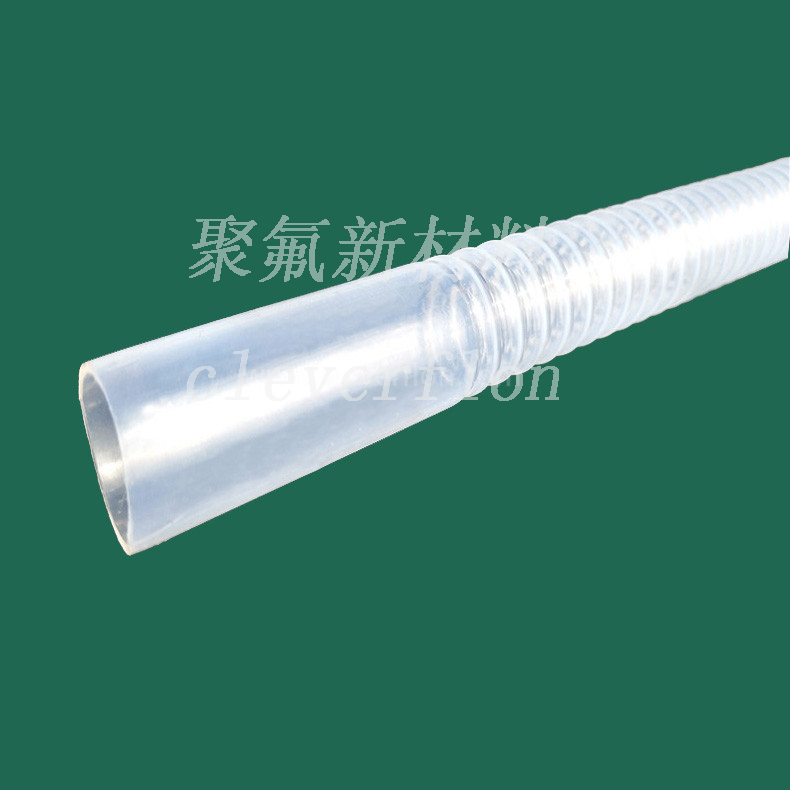

Transparent PFA corrugated tube Plastic flexible pipe
Diameter:1/8 to 2 inch or customised;
Wall thickness is 0.7 to 1.2mm;
Features:
Have excellent high temperature resistance ,corrosion resistance performance ,and have long using time . It is widely used in pesticides filling machine ,sulfuric acid filling machine ,food fillers ,oils filling machine , Medical equipment ,all kinds instrumentation, automotive oil tube and other industries.
Utilization Characteristic:
High and low temperature resistance -85oC~260oC
Not sticky, waterproof ,oil proof Security and insulation
Under 60HZ 60MHZ ,dielectric constant is 2.1 Even if firing ,and it will be still insulate Volume resistance >1018 Ωm Surface resistance >2×1013Ω Voltaic Arc >165 seconds insulation.
Only under high temperature ,fluorine and alkali will have chemical reaction, no reaction with all of other thick and thin inorganic acid, alkali ,ester.
Low water absorption<0.01% Non inflammability Non inflammability in air (oxygen index >95vol.%) Non hazardous With physical inertia High transparency Lowest refractive index in plastic material
Weather resistance Under ozone and sunshine for long time
Easy to process for second time Self-close,self joining ,flanging, and it can make into coil pipe
Data sheet of fluoropolymer products
