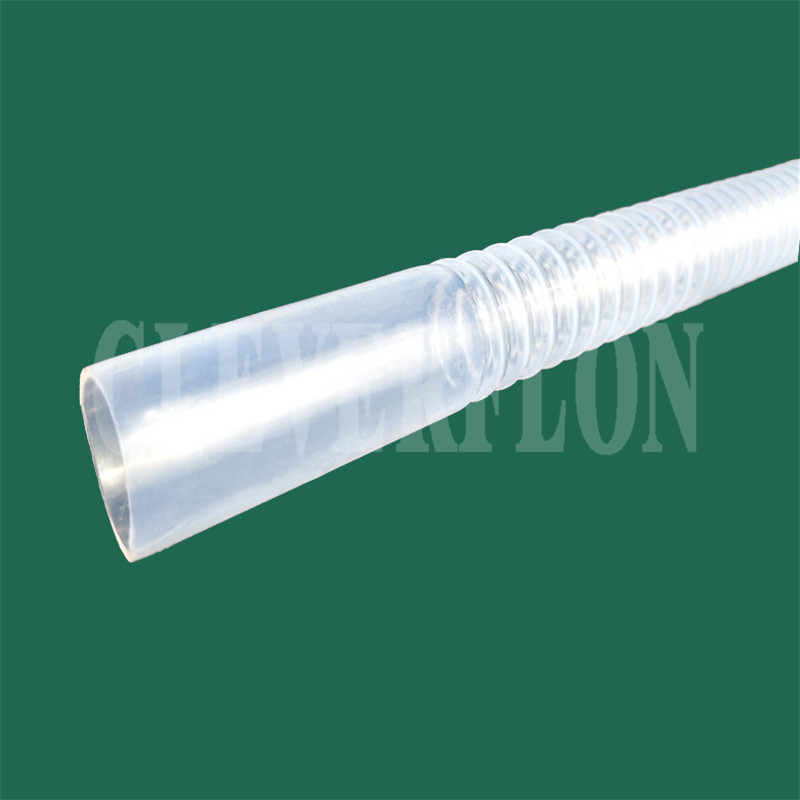

Heat Resistant and Corrosion Resistant FEP F46 PTFE Flexible Convoluted Pipe
Transparent FEP F46 corrugated tube Plastic flexible pipe
Diameter:1/8 to 2 inch or customised;
Wall thickness is 0.7 to 1.2mm;
Features:
FEP/F46 convoluted tubing has excellent high temperature resistance ,corrosion resistance performance ,and have long using time, conveying pipe is widely used in pesticides filling machines ,sulfuric acid filling machine ,food fillers ,oils filling machine , Medical equipment ,all kinds instrumentation, automotive oil tube and other industries.
Utilization Characteristic:
High and low temperature resistance -85oC~200oC Not sticky, waterproof ,oil proof Security and insulation
Under 60HZ 60MHZ ,dielectric constant is 2.1 Even if firing ,and it will be still insulate Volume resistance >1018 Ωm Surface resistance >2×1013Ω Voltaic Arc >165 seconds insulation
Only under high temperature ,fluorine and alkali will have chemical reaction, no reaction with all of other thick and thin inorganic acid, alkali ,ester
Low water absorption<0.01% Non inflammability Non inflammability in air (oxygen index >95vol.%) Non hazardous With physical inertia High transparency Lowest refractive index in plastic material Weather resistance Under ozone and sunshine for long time
Easy to process for second time Self-close,self joining ,flanging, and it can make into coil pipe
Data sheet of fluoropolymer products
