High Performance Expanded PTFE Waterproof Breathable Membrane_Cleverflon a leader for manufacturing and supply of fluoropolymer products

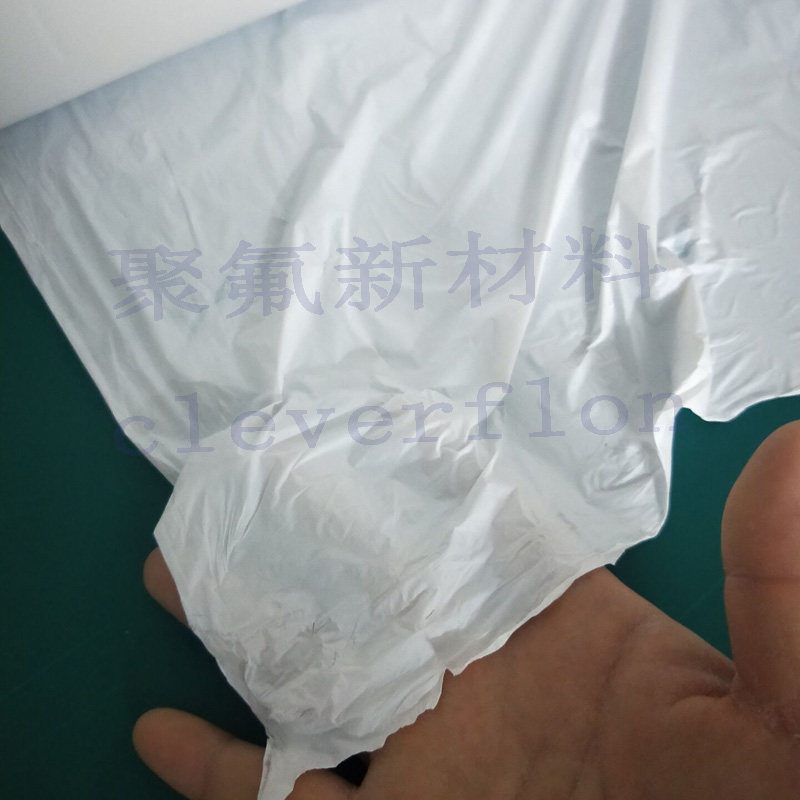

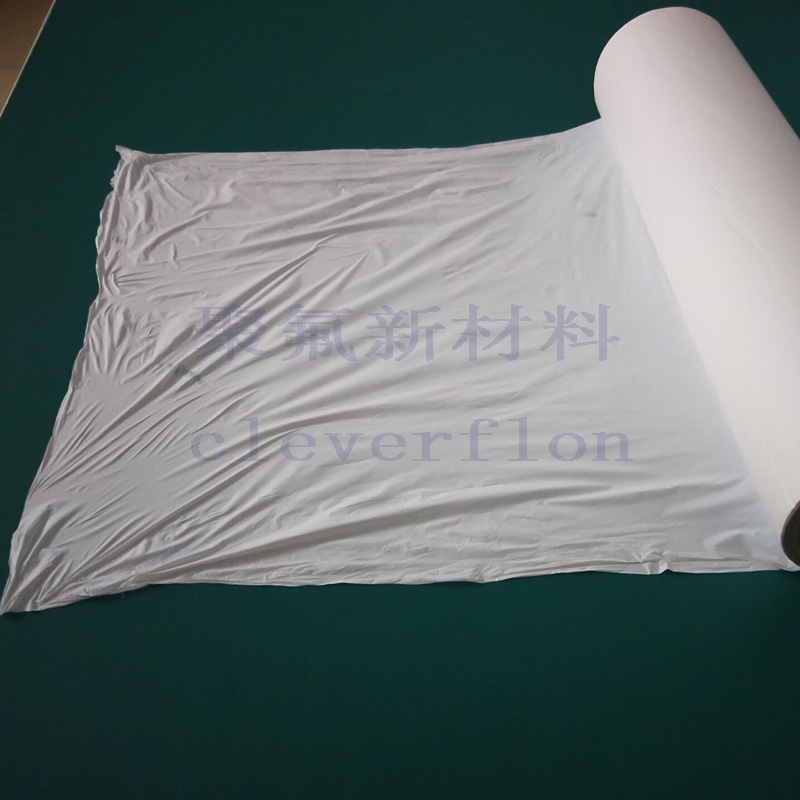

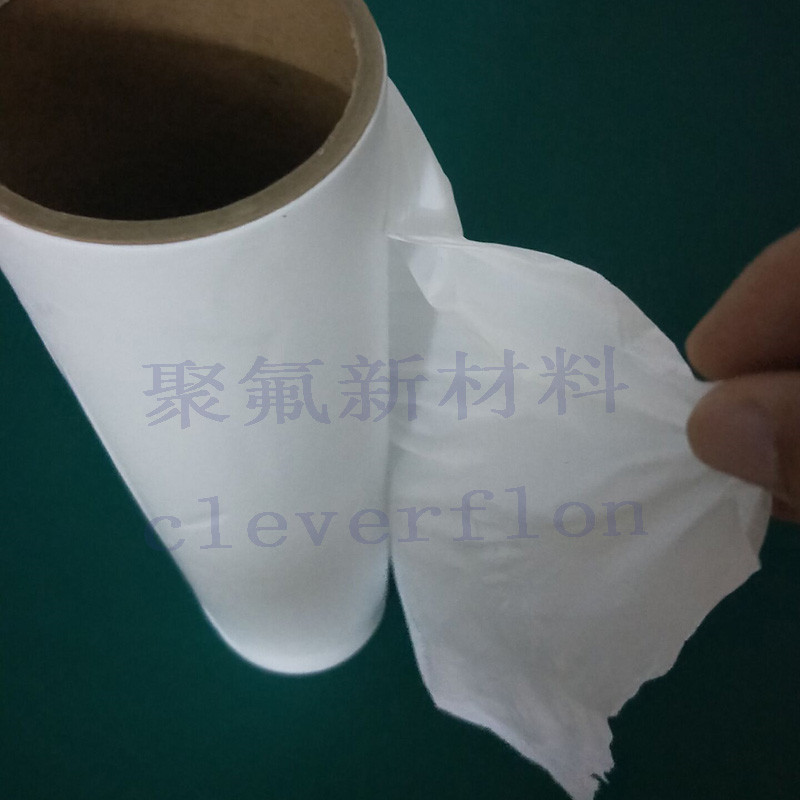

High Performance Expanded PTFE Waterproof Breathable Membrane

High precision Micropore ePTFE filter membrane

Material: Hydrophobic ePTFE Aperture:0.1~10um

Normal width 320mm or customized(max width 2000mm)

Type: flat rolled membranes

Technical Parameters

Product No.	Pore size (um)	Ethanol anhydrous initial bubble pressure(Mpa)	Air flux m3/m2.hr@0.01Mpa,25oC	Reinforce ment	Thickness (um)
ZYMSC-01	0.1	≥0.16-0.18	≥500	N/A	50-70
ZYMSC-022	0.22	≥0.12-0.14	≥800	N/A	35-45
ZYMSC-022G	0.22	≥0.13-0.15	≥900	N/A	30-45
ZYMSC-045	0.45	≥0.08-0.1	≥1000	N/A	20-35
ZYMSC-1	1	≥0.04-0.06	≥1200	N/A	20-30
ZYMSC-3	3	≥0.02	≥1600	N/A	15-20
ZYMSC-5	5	≥0.007	≥1800	N/A	10-20
ZYMSC-10	10	N/A	≥2400	N/A	10-15
the above data on initial bubble pressure and air flux is typical

Product strengths

1. High hydrophobility;

2. A gas filtration precision of 0.01 um and an efficiency up to 99.9999%;

3.Fairly high poroxity, low air resistance and high throughput;

4.Superb chemical stability and high temperature resistance.

Typical Applications

1. Sterilize and filter compressed air;

2. Filter fermented air terminals in antibiotic and biological projects;

3. Sterilize and filter air at vents of tanks, containers and cartons;

4. Filter air of sterile packages.

ePTFE micropore filter membrane and various ePTFE compound materials have been widely applied in different fields, including electronics, micro-electronics, medicine, liquor-making, food industry, biological, engineering, petroleum chemistry, industrial wastewater treatment, seawater pretreatment and laboratories.
